Motorsport Electronics Nodiz Pro GenX With Unterminated Harness

The NODIZ Pro GEN-X is a compact and powerful ignition-only ECU for four cylinder engines. Based on the ME100 core, it is a complete redesign of the NODIZ Range. Fully waterproof, and the defacto control ECU for several race series in the UK including BRISCA. Suited to classics and modern carburetor-converted engines, the NODIZ Pro GEN-X does just what it says on the box – No Distributor. Digitally fired coils with the full tuneability of a 3D map.

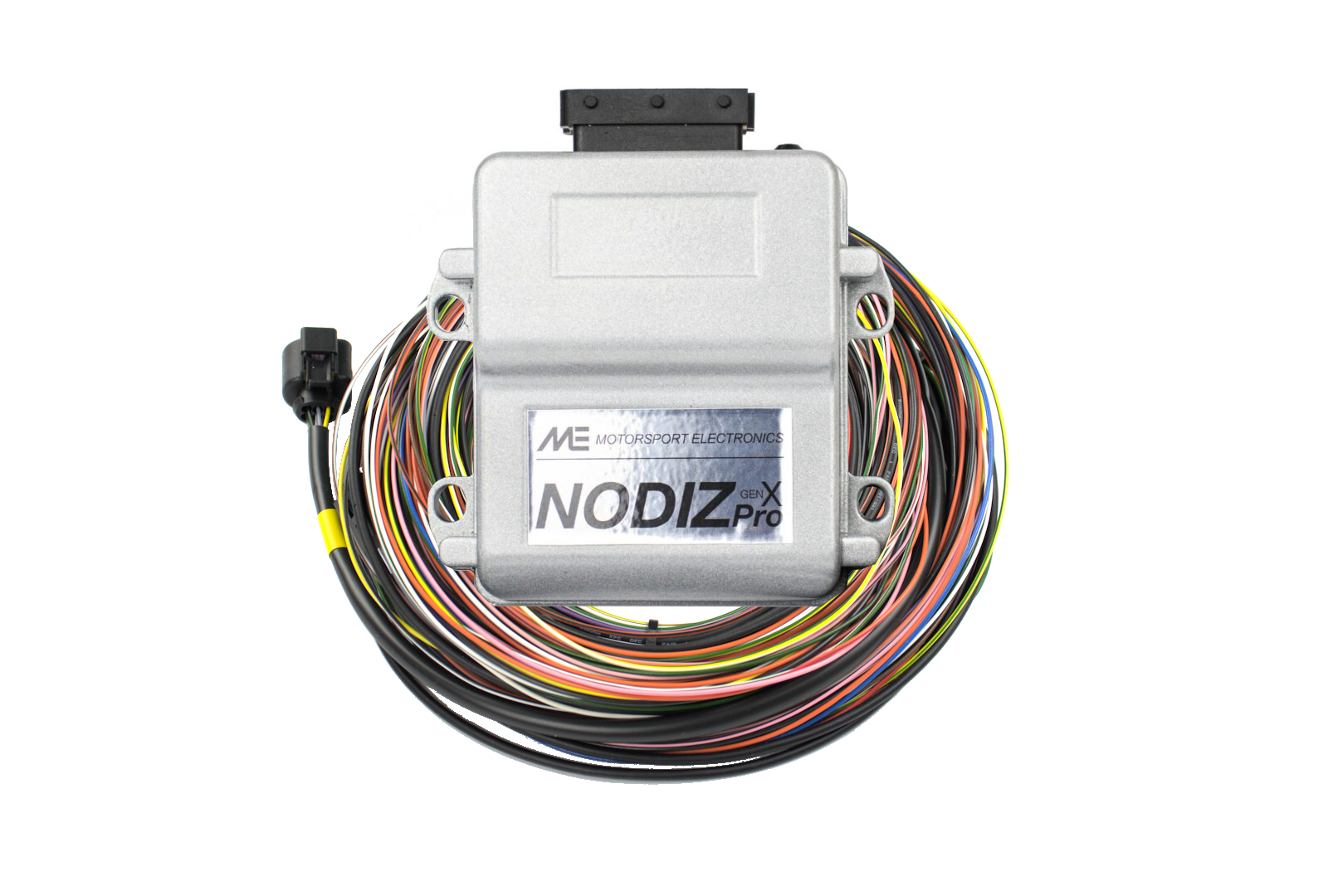

This is the Unterminated variant – meaning it has 3m of colour-coded wire so you can fully customise your harness with any connectors you desire.

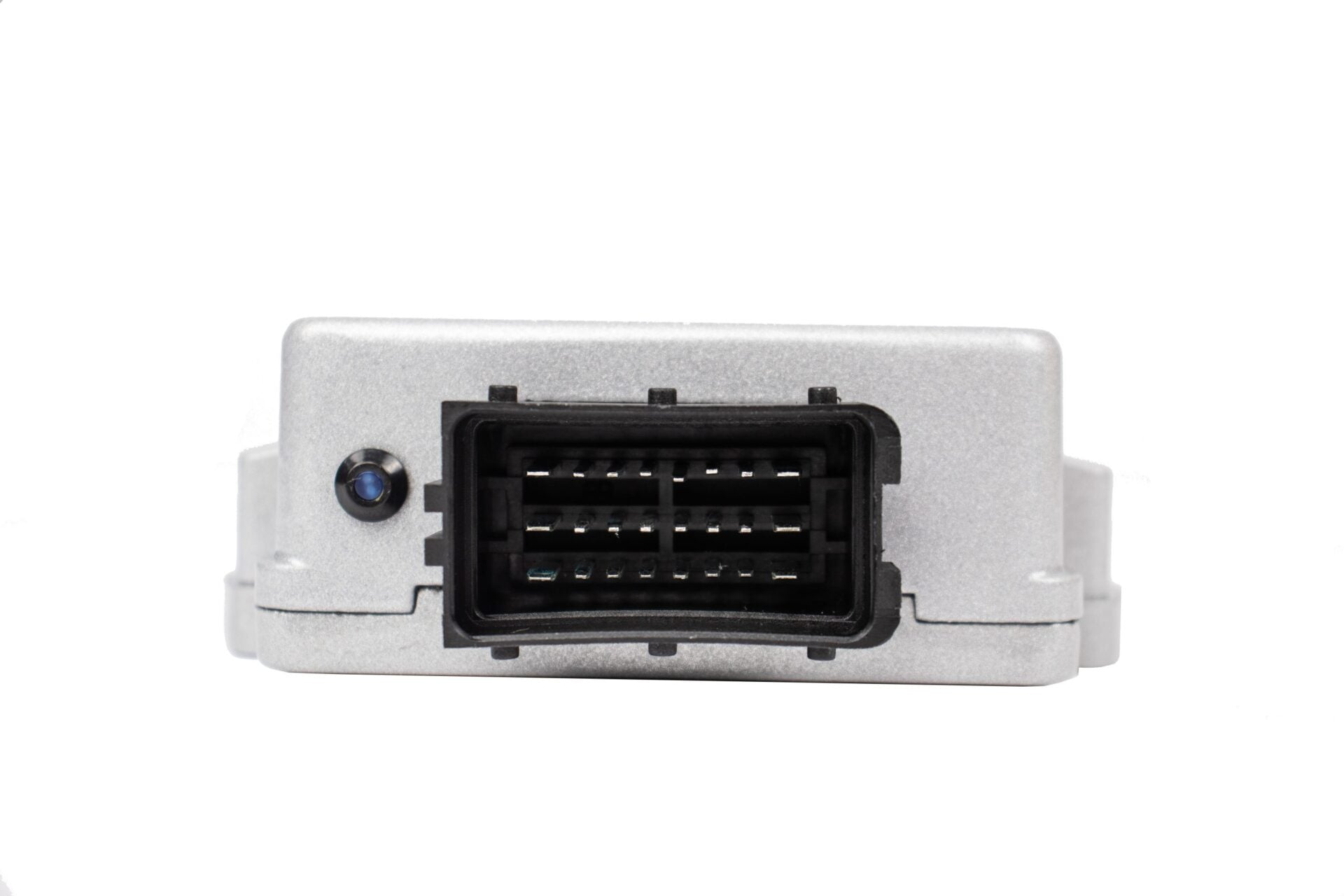

The inbuilt diagnostics LED lets you know if you have a crank sensor or coil pack issue – no need for a laptop for the basics making diagnostics easy – but plug in a laptop and download the free MEITE tuning software for a powerful engine management experience with full tuning options.

The unit features three spare outputs for shift lights, cooling fans, fuel pumps etc, all software configurable.

Add a throttle sensor or MAP sensor to allow full 3D tuning based on load as well as engine speed.

Key Features

• 16×16 3D Ignition Table
• Direct Coil Drive, Wasted Spark Ignition
• 36-1 or 60-2 trigger patterns supported
• 2D mode or Throttle/MAP for load
• Direct Serial Connectivity
• Hard Cut/Soft Cut Limiters
• Auxiliary & Shift Light Output
• 12V Adjustable Tachometer Output
• Fully enclosed and Waterproof
• Basemaps Preloaded
• Launch Control
• Status Indication LED
