Motorsport Electronics ME221 Plug-In ECU For Mazda MX-5 Mk2 1999-2000

The ME221 MX-5 Plug-In is the latest Plug-In Engine Management System for the Mk2 (3 Plug NB) MX-5 / Miata, years 1999-2000 1.6/1.8

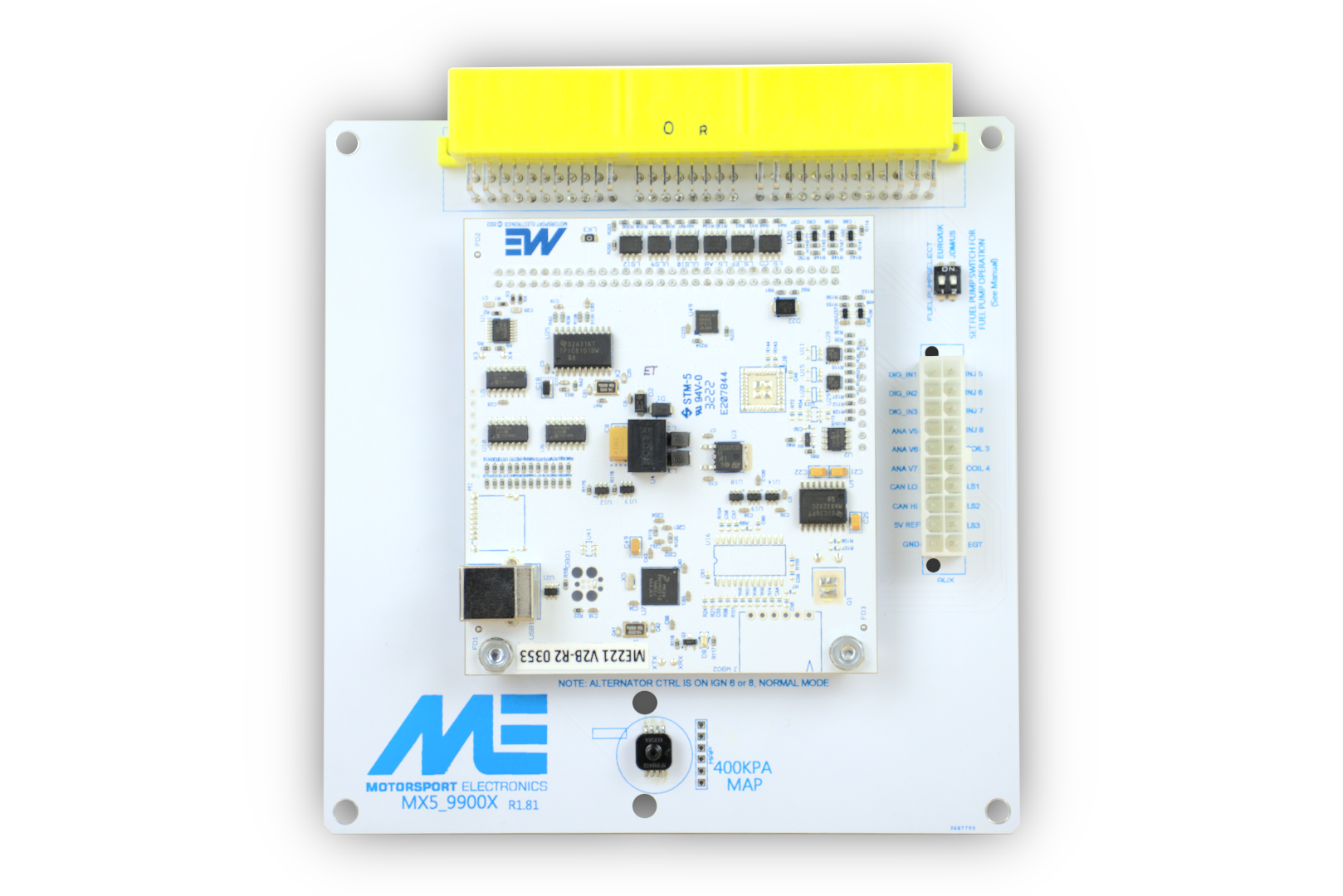

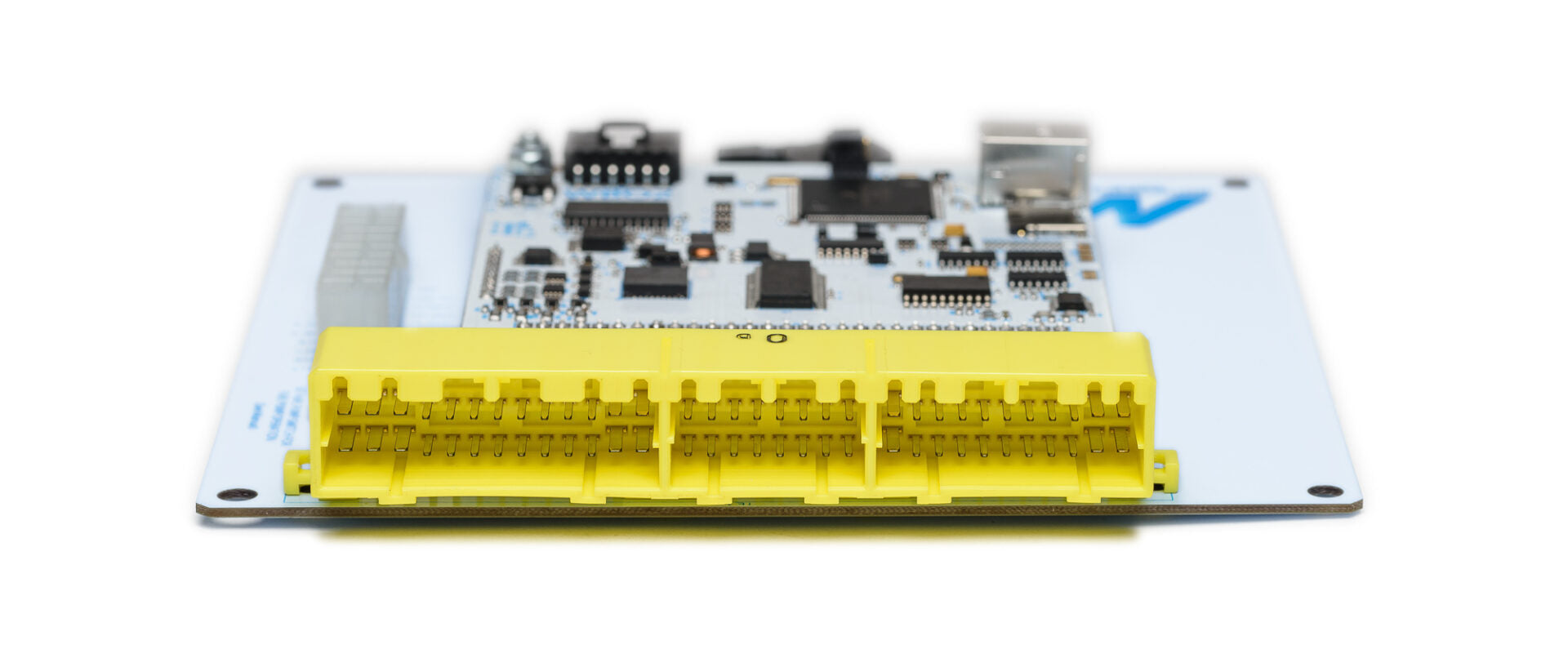

This convenient plug-in ECU is designed to replace the original circuit board within the casing of the vehicle's factory ECU. The ECU retains the original connector, allowing for a straightforward installation process. The OEM ECU casing provides protection and ensures a clean, factory-like appearance. By fitting inside the original casing and utilising the original connector, the ECU offers a discreet and efficient way to upgrade the engine's control system.

With this type of plug-in ECU, you can enjoy the benefits of enhanced engine performance and customisation without needing to modify the wiring harness or perform extensive rewiring while maintaining full OEM functionality!

It supports the 1.6 and 1.8 model from the same hardware, the only extra thing you need to do besides plugging it in is run a MAP vacuum hose (supplied) from the ECU to the intake manifold.

• Uses the ME221 ECU Core (NXP Automotive Processing Power)
• Supports factory sensors.
• Truly Plug-In : Supports both switched TPS and linear TPS conversions.
• 16×16 Fuel and Ignition Tables (with dual table switching)
• VE based fuelling algorithm.
• Run any type of high impedance injectors.
• DSP Knock Control
• In-built 60psi MAP sensor
• Closed Loop Boost, Lambda and Idle Control
• Launch Control
• Fully Sequential on 1.8 version
• In the field regular firmware updates and improvements
• Uses the powerful MEITE tuning studio.
• An open approach to firmware/software features.
• Supplied with rolling road certified and developed basemaps for either turbo or NA setups.

Key Features

• VE Based fuelling algorithm (MAF-less)
• Supports all OEM Sensors/Dash/AC etc
• Boost Control
• OEM Idle Control
• High Accuracy
• COP Support
• USB Connectivity
• Switchable Maps
• VVT & DSP Knock Control
• Configurable IO with Auxillary Inputs/Outputs
• Advanced Motorsport Features
• Powerful Tuning Suite

Whats in the box

• ME221 ECU
• Vacuum hose
• Sticker
• USB Cable
